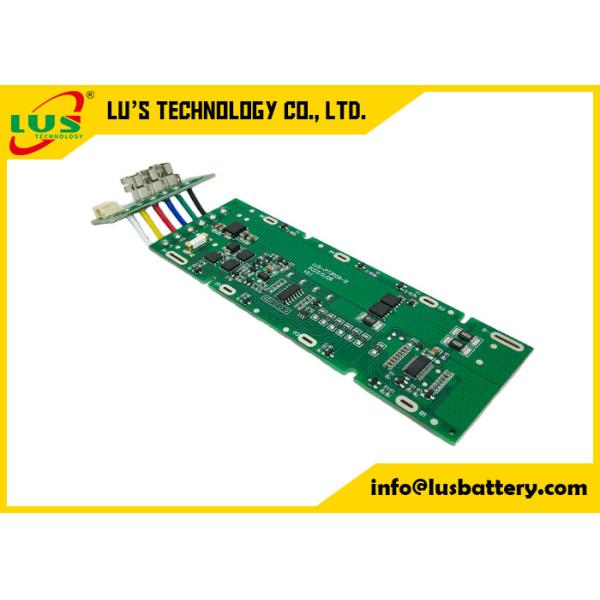

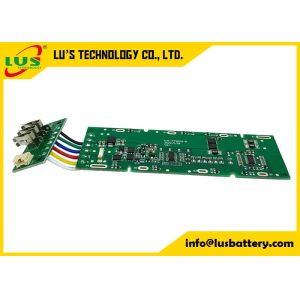

7S PCM with Equilibrium & Temperature protection function for 7S
Li-Ion Battery Pack 25.9v 7S battery BMS
BMS For 25.9V(7S) Li-ion Battery Packs
Specification:
| No. | PARAMETER | Criterion |
| 1 | Voltage | Charging voltage | DC:29.4V CC/CV |
| Balance voltage for single cell | 4.125±0.025V |
| 2 | Current | Balance current for single cell | 80±5mA |
| Current consumption | ≤35μA |
| Maximal continuous charging current | 2A |
| Maximal continuous Discharging current | 17.5A |
| 3 | Over charge Protection | Over charge detection voltage for single cell | 4.25±0.025V |
| Over charge delay time | 800mS~1200mS |
| Over charge release voltage for single cell | 4.15±0.05V |
| 4 | Over discharge protection | Over discharge detection voltage for single cell | 2.80±0.03V |
| Over discharge detection delay time | 800~1200mS |
| Over discharge release voltage for single cell | 3.0±0.025V |
| 5 | Over current protection | Charge over-current protection | 8A±10% |
| Charge Over-Current Delay | 400~600mS |
| Discharge over-current protection1 | 20A±10% |
| Detection delay time1 | 700~1300mS |
| Discharge over-current protection2 | 40A±20% |
| Detection delay time2 | 70~130mS |
| Release condition | Cut load,Automatic recovery |
| 6 | Short protection | Detection condition | Exterior short circuit |
| Detection delay time | 160~240uS |
| Release condition | Cut load,Automatic recovery |
| 7 | Resistance | Protection circuitry(MOSFET) | ≤2mΩ |
| 8 | Temperature | Operating Temperature Range | -25～+70℃ |
| Storage Temperature Range | -40～+125℃ |
| Charge Over Temperature | 48.5℃±5℃ |
| Charge Under Temperature | -5℃±5℃ |
| Discharge Over Temperature | 70℃±5℃ |
| Discharge Under Temperature | -25℃±5℃ |
Include contact plate very suitable for battery case ,widely use in
power tool field:
Feature:
1.True lithum battery pack BMS factory
2.Supply OEM/ODM and custom service
3.High quality with smart balance function
4.Wholesale price
5.Environment
6.Fast delivery
Function:
Detect and protect the battery from over-charge ,over-dicharge,
over-current short-circuit
,temperature detecting protection and auotmatically voltage balance
function .
Build with high end electronic components (High End IC and MOSFET )
,simple structure
design will let it have more stable quality working performance ,
Flexible application ( it can be used for less
series battery by leaving some connection pins at empty status
),full set of protection measures let it works well
without any infulence from external unexpected accidents.
About your products,just tell us the relative voltage/ cells/
current A or equipment etc,
we will help to recomment the most suitable products for you. or we
design for you!
