Model:
Li-Polymer battery
3.7V rechargeable batteries
Polymer lithium battery
Lithium ion battery
Li-ion Polymer Battery

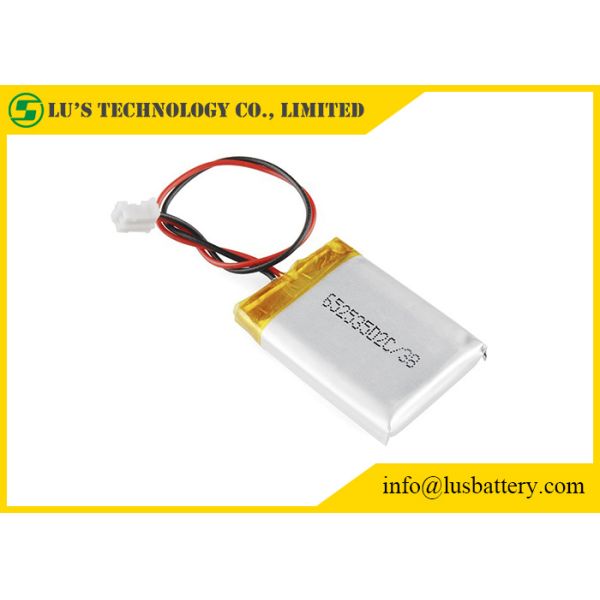

LP652535 Lithium Polymer Battery 3.7V Rechargeable Lithium Cell
652535 With PCM And
Wires And Connector
PCM parameter :
| NO | Items | Criteria |
| 1 | Over –charge Protection voltage.. | 4.2±0.025V |
| 2 | Over –discharge Protection voltage. | 2. 45±0.1V |
| 3 | Over –current detection voltage. | 0.15±0.01V |
| 4 | Current consumption in normal operation
| 9uA Max |
Major Application:
1) MP3/MP4 player, bluetooth, speakers, car GPS and all possible
electronics products
2) Widely applied in Telecommunications, Audio and Video Devices,
Information Devices...Etc.
Li-Polymer battery Product Advantages:
1) Environmental friendly
2) High density of energy
3) Light weight
4) Low self-discharge
5) Low internal resistance
6) Long cycle life, chargeable up to 500 or 1000 times
7) No memory effect
8) Doesn’t contain Mercury, No fire, No explosion, No leakage
9) Very good and quick charge, capability can be charged to 90%
within 10 min.
10) Thickness can be adjusted while width and height keep the same
Storage and Others
a) Long Time Storage
If the Cell is stored for a long time, the cell’s storage should be
3.6~3.9V and the cell is to be
stored in a condition as specification.
b) Others
Any matters that this specification does not cover should be
conferred between the customer
and LUS.
Appearance
There shall be no such defect as flaw, crack, rust, leakage, which
may adversely affect
commercial value of battery.
652535 Polymer Lithium Battery 3.7V :
