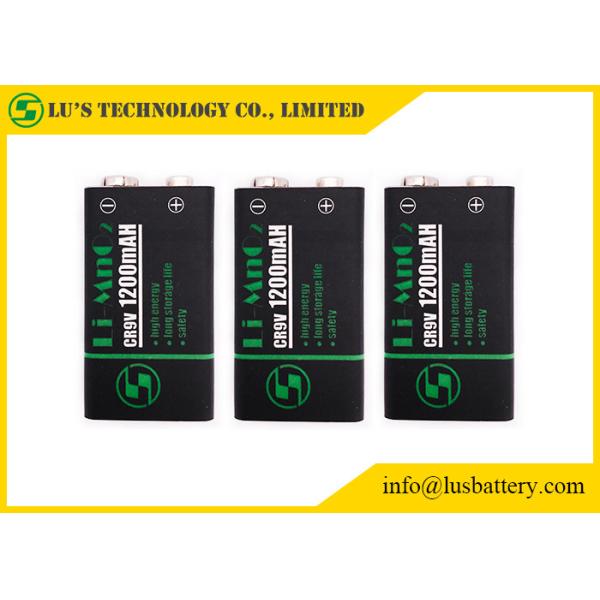

Model:CR9V Square lithium battery 1200mAh
Rating
| Type | Disposable battery | Non rechargeable battery |
| Name | Lithium Manganese Dioxide Battery | Limno2 battery |
| Model | CR9V | CP9V |
| Capacity | 1200mah | Single cell |
| Max. Discharge Current | 300mA | At 23±2℃,battery discharge duration for 3 seconds and stand 27 seconds, it can discharge at least the max
pulse discharge value which rated capacity 50% can permit |
Discharge Cut-off Voltage | 5.4 V | |
| Operating Temperature | -20℃~ +60℃ | Exceed the operating temperature range could lead to battery
operating voltage reduction or even a security risk. |
| storage temperature | -5 ℃~+35℃ | 9.15V~9.75V |
| Storage life | 10 years | Relative humidity Temperature -5 ℃~+35℃ |
| Cell Weight | Approx: 32 g | |
| Self Discharge Rate | 2% | Out of the recommended condition, the self-discharge rate 2% may
increase. |
| Assemblage Dimension | Length:49.0mm Max Width:27.5 mm Max Thickness:17.5 mm Max | Measured weight of 300gf at 25 ℃ ± 1 ℃.Not including battery connecting wire. |
Handling of cells:
★ Avoid any short-circuit. It will cause the leads to get hot and
lose electronic functions.
★ Soft package is easily damaged by sharp objects such as needles
and knives. Avoid
touching the cells
with sharp objects when handling and storing.
★ Next to the leads is the sealed edge. Don’t bend or fold the
sealing edge as it is sensitive to
movement.
★ Don’t open the folded edge on the sides of the cell.
★ Don’t bend the tabs as the tabs are sensitive.
★ Avoid mechanical shock to the cells.
★ Don’t put the cells into an oven, washing machine or any
high-voltage container.
★ Don’t use a charger without a safety certification. Use only a
recommended charger.
★ You should immediately stop charging if the cell overheats, emits
an odor, changes color,
changes
shape, etc.
★ Adults should supervise the use of batteries by children.
★ Before using batteries, please carefully read and understand the
handling guidelines.
★ Avoid electro-static discharge when using, charging, and storing
cells.
★ Avoid putting the battery in contact with metal conductors such
as neck chains, barrettes, or
bolts, etc.
★ Don’t use metal conductors to connect the positive and negative
leads together.
★ Avoid errors during assembly by contacting the positive lead with
the negative lead.
Main points of flexible packaging lithium manganese battery
Flexible package structure design, special negative electrode
structure design, self sealing
diaphragm: improve battery safety;
Special raw material pretreatment: improve battery storage and
comprehensive performance;
Continuous coating technology: improve battery performance,
consistency and reliability;
Special electrolyte formula: improve battery environment,
adaptability and storage
performance;
HRL coating technology: improve battery safety performance and
storage performance;
Battery integrated design technology: to ensure the highest safety
performance of batteries,
comprehensive design of the performance;
Large capacity flexible packaging lithium manganese battery
technology: improve battery
composition, group consistency;
Hybrid battery technology: both high specific energy and high pulse
current performance.
